## Final polish of the kinetic parameters using preliminary information from the parameter-dependence on modifier concentration

The worked example discussed here is the same as in the preceding pages. The data, simulated by adding error, are very useful for comparing the results with the theoretical values, considering or not constrained parameters.

The plots discussed under Raw data illustrated the information that can be gathered from the dependence of the kinetic parameters on modifier concentration. Fitting the appropriate equations to the values of *k*_{cat}, *K*_{m} and *k*_{cat}/*K*_{m} yielded fairly good estimates of the parameters that serve to identify the mechanism, notably *α* and *β*. **Figs. 2** and **4** in the page Raw data afforded *α* = 2.4 and *β* = 0.4, sufficient to assert that the data belong to a hyperbolic mixed, predominantly specific inhibition mechanism, acronym **HMx(Sp>Ca)I**. The same diagnosis was obtained using the dependence of the kinetic parameters on modifier concentration and the specific velocity plot.

We wish now to refine the calculation of the parameters using the entire set of raw data. To this end we fit eq. (1) to the data in **Table 1** *globally sharing *the parameters among the six curves. The plots are shown in **Fig. 1**.

(1)

In the results table it is important to examine not only the parameters with their errors and confidence intervals but also the *dependency* of each parameter from the remaining parameters. **Table 2** reports a summary of the fits, while **Table 3** shows more details, such as the covariance matrix.

In **Table 2**, column 1, all parameters were included *unconstrained* in the fit. *K*_{X} has the largest deviation from the theoretical value and the strongest dependency from the other parameters. The normalized covariance matrix of *β* and *K*_{X} is in this case −0.9049, the largest among all combinations of parameters (**Table 3**). This suggests that constraining *β* and possibly at least another parameter may improve the quality of the procedure.

Considering **Table 2**, constraining only *α* (column **2**) or only *K*_{m} (column **3**) has minor on no benefits. However, constraining *β* (column **4**) or *α* and *β* at the same time (column **5**) produces a trustworthy value of *K*_{X}. Thus, global analysis, constraining *α* and *β* is a good method for estimating the other parameters. Their deviation from the unknown true values depends on the quality of raw data.

To identify the parameter that causes a large dependency, the *covariance matrix* can be examined. Unlike the dependency, which is a single value calculated for each parameter, the covariance matrix provides the *normalized covariance* for all pairs of parameters in the model and has values between −1 and 1. When the dependency is high, the normalized covariance with at least another parameter is high as well.

## Dependency and covariance matrix: practical hints

Adapted from GraphPad Prism, Curve Fitting Guide (once in the website search for *dependency* ).

The dependency varies between 0 and 1 and states how much a given parameter is *intertwined* with all remaining parameters. Completely independent parameters have a dependency of 0, while a dependency of 1 indicates that the parameters are redundant. With a high dependency, the same curve can be created with different sets of parameter values.

Remedies: 1) a simpler model can possibly perform better; 2) two or more sets of different experiments can be analyzed by global fitting; 3) constrain critical parameters to constant values if these can be determined independently.

**Table 1**. Raw data of the initial velocities in **Fig. 1** as *v*/[E]_{t}

[S] | [X] = 0 | [X] = 10 | [X] = 28 | [X] = 60 | [X] = 110 | [X] = 200 |
---|---|---|---|---|---|---|

24 | 11.18 | 9.40 | 7.57 | 5.82 | 4.70 | 3.67 |

56 | 19.60 | 17.40 | 14.43 | 11.44 | 9.19 | 7.19 |

112 | 28.34 | 25.26 | 21.46 | 17.32 | 14.40 | 11.76 |

192 | 34.41 | 30.89 | 26.90 | 22.27 | 18.82 | 15.40 |

280 | 38.05 | 35.18 | 30.21 | 25.47 | 21.56 | 18.08 |

392 | 41.60 | 31.67 | 33.02 | 28.24 | 23.79 | 20.12 |

**Table 2**. Summary of the best-fit results from fitting (1) to the data in **Table 1/Fig. 1**. Numbers in parentheses represent the *dependency* of the considered parameter from the remaining parameters. In rows 2-5, the red numbers indicate the parameters that were constrained to fixed values in order to appreciate how the remaining fitted parameters change in comparison with their theoretical values. Original results in **Table 3** with a complete list. The redundant precision with two decimals serves merely to illustrate the method.

1 | 2 | 3 | 4 | 5 | 6 | |
---|---|---|---|---|---|---|

Parameter | No constraints | αconstrained | K_{m}constrained | βconstrained | α and βconstrained | Theor. values |

α | 2.23 ± 0.13 (0.6752) | 2.4 ^{(1)} | 2.21 ± 0.09 (0.3912) | 2.5 ± 0.2 (0.4283) | 2.4 ^{(1)} | 2.4 |

β | 0.34 ± 0.01 (0.9128) | 0.34 ± 0.01 (0.9007) | 0.33 ± 0.09 (0.8991) | 0.40 ^{(2)} | 0.40 ^{(2)} | 0.35 |

k_{2} | 49.96 ± 0.33 (0.9181) | 49.69± 0.25 (0.8499) | 50.03 ± 0.15 (0.6129) | 49.53 ± 0.39 (0.908) | 49.7 ± 0.3 (0.85) | 50 |

K_{X} | 47.98 ± 2.22 (0.9508) | 46.63 ± 1.83 (0.9315) | 48.25 ± 1.82 (0.986) | 40.01 ± 0.92 (0.6604) | 40.16 ± 0.89 (0.6412) | 39.77 |

K_{m} | 86.62 ± 1.75 (0.9313) | 85.17 ± 1.27 (0.873) | 87 ^{(1)} | 83.36 ± 1.91 (0.9177) | 84.15 ± 1.52 (0.8698) | 85 |

^{(1)} Calculated in **Fig. 4** of Raw data. ^{(2)} Calculated in **Fig. 2** of Raw data.

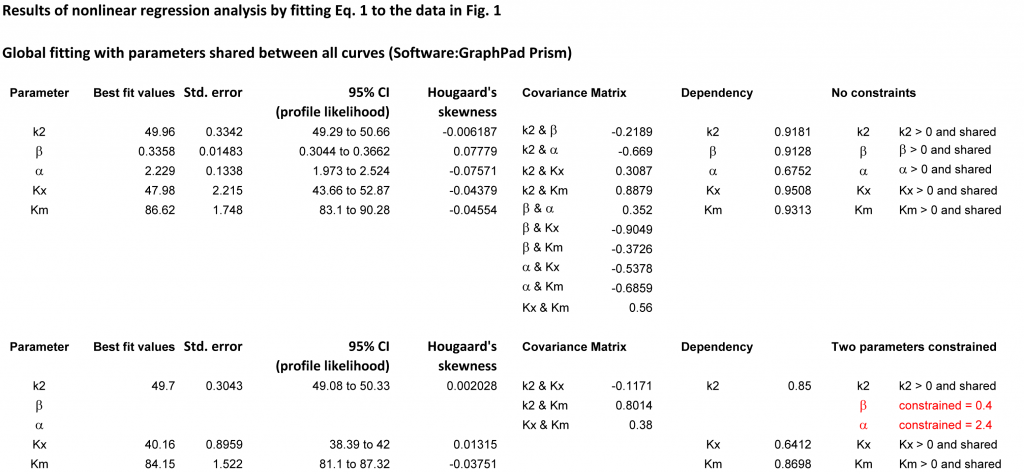

**Table 3**. Complete results of the fit of (1) to the data in **Fig. 1**. Zoom/Download

## Final polish of the kinetic parameters using preliminary information from the specific velocity plot

Using the same simulated data we calculated the parameters from the dependence of the kinetic parameters on [X]. With the specific velocity plot we obtained *α* = 2.49, *β* = 0.33, *K*_{X} = 39.5, and from the direct linear plot *k*_{cat} = 49.8 and *K*_{m} = 84.

Fine tuning the parameters can now proceed exactly as demonstrated above for the dependence of the parameters on [X]. The results are shown in **Table 4**, where the differences from the results in **Table 2** depend on the choice of the constrained parameters. Small discrepancies are visible because we can compare calculated and theoretical parameters.

By repeating the simulation with the same multiplicative random error (1.2% standard deviation of the calculated rates in our example) the calculated parameters change at every run because the error is *random*. How much the calculated values are close to the theoretical values using the specific velocity plot or the parameter dependence on [X] is purely casual. However, in real experiments, the true values of what we are measuring are unknown and we must accept errors and uncertainties as they are.

**Table 4**. Best-fit results from fitting **Eq. 1** to the data in **Table 1**. Numbers in parentheses represent the *dependency* of the considered parameter from the remaining parameters. The estimates of *α* and *β* are those from the specific velocity plot, and *K*_{m} was calculated with the direct linear plot. The redundant precision with two decimals serves just to illustrate the method.

1 | 2 | 3 | 4 | 5 | 6 | |
---|---|---|---|---|---|---|

Parameter | No constraints | αconstrained | K_{m}constrained | βconstrained | α and βconstrained | Theor. values |

α | 2.23 ± 0.13 (0.6752) | 2.49 ^{(1)} | 2.37 ± 0.11 (0.3537) | 2.2 ± 0.1 (0.6479) | 2.49 ^{(1)} | 2.4 |

β | 0.34 ± 0.01 (0.9128) | 0.34 ± 0.01 (0.9008) | 0.34 ± 0.01 (0.8966) | 0.33 ^{(1)} | 0.33 ^{(1)} | 0.35 |

k_{2} | 49.96 ± 0.33 (0.9181) | 49.56± 0.25 (0.8490) | 49.52 ± 0.15 (0.6127) | 49.99 ± 0.12 (0.9144) | 49.55 ± 0.25 (0.849) | 50 |

K_{X} | 47.98 ± 2.22 (0.9508) | 46.02 ± 1.86 (0.9319) | 46.13 ± 1.77 (0.9259) | 48.77 ± 0.95 (0.7374) | 47.66 ± 1.27 (0.6131) | 39.77 |

K_{m} | 86.62 ± 1.75 (0.9313) | 83.48 ± 1.30 (0.8745) | 84 ^{(2)} | 86.66 ± 1.61 (0.9205) | 84.76 ± 1.27 (0.8678) | 85 |

^{(1)} From the specific velocity plot, ^{(2)} From the direct linear plot

For modifiers that bind the enzyme tightly, the final polish is HERE
